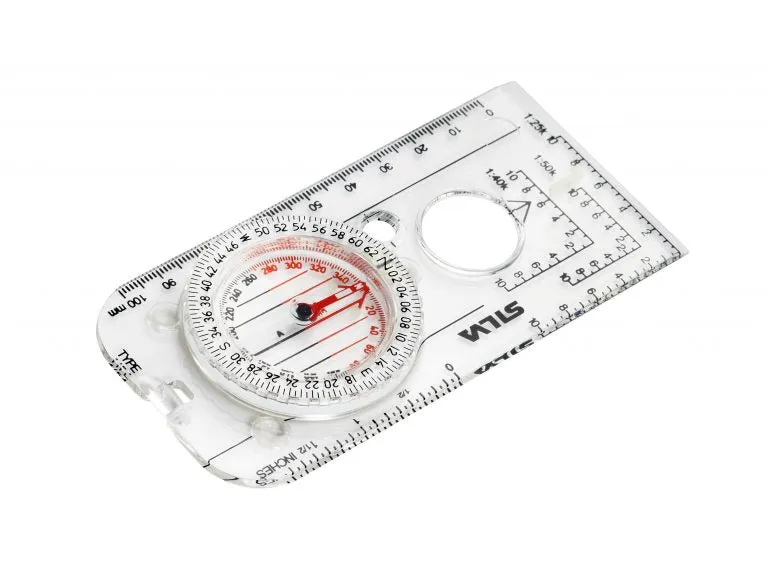

The “full-sized” base plate compass for experienced navigators – used by NATO Forces around the world. Mainly used by the infantry as a soldier’s or officer’s compass. Additional features include measuring scales for positioning (GPS), graduated in mils and degrees (6400/360), magnifying glass and rubber feet for precision map work. Luminous compound that need to be activated by daylight/flashlight etc. Will give light up to 4 hours.
| Accuracy | ± 1° (17.8 mils) |
|---|---|
| Altitude use | 5000m @-15 °C |
| Clinometer | No |
| Declination adjustment | Declination scale inside capsule |
| Graduation | 360°, 6300°, 6400° / 360° (360° inside the capsule) |
| Illumination | 4 hours after activation in light |
| Impact resistance | 30g in XYZ directions and free fall from 1.5 m height into gravel |
| Luminous compound | Tritium compound 80 mCi |
| Magnifying lens | Yes |
| Material | Acrylic |
| Patented red/black N/S lines in capsule | Yes |
| Resolution degrees / mils | 2 / 50 |
| Scales | mm, inch |
| Settling time from 90° angle to complete rest | 5 sec |
| Settling time from 90° angle within ± 3° | 2.7 sec |
| Sighting System | No |
| Silicon friction feet | Yes |
| Size | 126 x 60 x 10 mm |
| Temperature operating range | -40 to 60 °C |
| Type of compass | Silva 1-2-3 System Mirror sighting compass |
| UTM position plotting scales (Romer scales) | 1:25k, 1:40k, 1:50k |
| Water resistance | IP68 – (more than 100 m) |
| Weight | 36g |
| Variant | Magnetic Equator, Magnetic North, Magnetic South |
